Storage System (72 slots)
+ KDV
1
Storage System (72 slots)
New

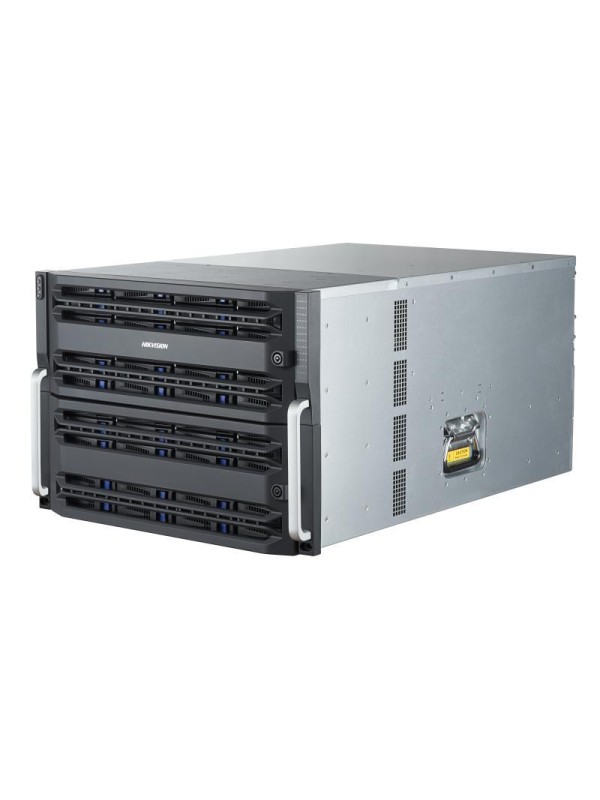

Hikvision Storage System (72 slots)
- Economical and stable hardware platform (64-bit multi-core processor, 8 to 64GB high-speed cache)
- HDD detection and repair/RAID optimization (8U chassis model 72 HDD)
- Surveillance-dedicated direct storage (Direct Streaming mode+IP SAN mode)
- Advanced data protection (synchronous backup of important information on system disks)
- N+1, iSCSI, RTSP, ONVIF, PSIA
- Energy-saving and user-friendly user interface
DS-A81072S| Video | |
| Video Protection | Lock key video, N+1 service protection, ANR, video loss detection and alarm |
| Network | |
| Network Protocol | iSCSI, RTSP, ONVIF, PSIA |
| RAID | RAID 0, 1, 3, 5, 6, 10, 50,JBOD, Hot-Spare |
| Video & Audio Output | |
| VGA | Supported |
| Interface Unit | |
| Interface / Format | SATA/1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, 16 TB |
| Number of HDDs | 72 |
| HDD Capacity | RAID(Enterprise Hard Disk) |
| General Features | |
| Cache Memory | 8 GB (extendable to 64 GB) |
| Hot-Swap | Supported |
| Management Mode | Web-based GUI, serial port CLI, centralized management of multiple devices |
| Power Supply | Redundant 1200W |
| Processor | 64-bit multi-core processor |
| Power Consumption | ≤ 1153 |
| Operating Temperature | +5 °C to +40 °C (41 °F to 104 °F) |
| Dimension | 486 x 776x 344 mm (19.1 x 26.9 x 13.8 in) |
| Weight | 53kg |
| Data Network Interface | 4, 1000M Ethernet interface(4 × GbE or 2 × 10GbE is extendable) |
| Downloading Mode | Quick download, batch download, download by segment, download by merging |
| Management Network Interface | 1, 1000M Ethernet interface |
| USB | 2*USB3.0，1*USB2.0 |
| Direct Streaming Mode | 512 channel |
